Key Feature:
Supports comprehensive weld measurement parameters including depth/penetration, leg length, throat thickness, root penetration, weld angle, percentage penetration, and all standard 2D measurements.
Enables calculation of midpoints, construction of perpendiculars, and measurement of angles between lines.
Allows creation of fully customizable user-defined parameters.
Provides user-defined templates for various component types, including specified parameters, expected values, and tolerance limits.
Facilitates definition of customized rules and criteria for PASS/FAIL evaluation.
Offers capability to generate master templates for measurement setups specific to each component type.
Allows setting of specifications and tolerances at both individual parameter level and master template level.
Supports detailed component-level reporting.
Displays date and time directly on the captured image.
Annotates images with measurement results and parameter names.
Enables addition of user comments on images.
Generates reports in both Excel and PDF formats.
Model – pixel-WPMS 10.5

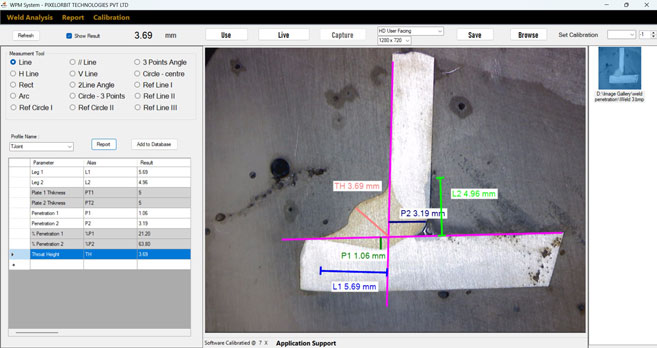

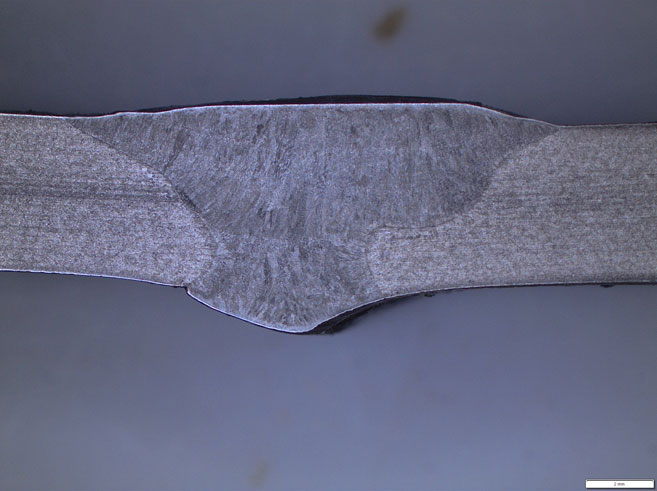

Weld Parameters Analysis
Leg length, throat, penetration, root penetration, metal thickness etc.
Area and depth of Heat Affected Zone (HAZ)
Joining Angle measurement
Color selection for independent measurements
Option for printing the readings on image
Tolerance limit facility with GO/No GO indications for observed readings
Porosity and other defect Analysis
Geometrical parameters such as length, width, area, perimeter estimation of porosity
Crack length and width
Maximum Lack of fusion penetration depth
Tolerance limit facility with GO/No GO indications for observed readings
Two-Dimensional Measurement Feature.
Object counting
Distance between any two points
Angle between two edges
Rectangle measurement
Irregular Area measurement
Length, width, Angle, Arc Measurements.
Customized report generation in Excel, Word, PDF as per end user formats etc. Report will have the measurement data as well as the image with drawings.
Component level summary report, with images & measurements of each weld spots Company Logo
| Model | Pixel-ZM |
|---|---|
| Magnification | 6X to 60X |
| Field of View | 28.6 – 4.4 mm |
| Model | Pixel-5MP |
|---|---|
| Image Sensor | 1/2.5" Type CMOS |
| Effective Picture Elements | 2592 × 1944 (H × V) |
| Maximum Frame Rate | 5.8 fps at Full Resolution |
| Pixel Size | 2.2 × 2.2 μm |
