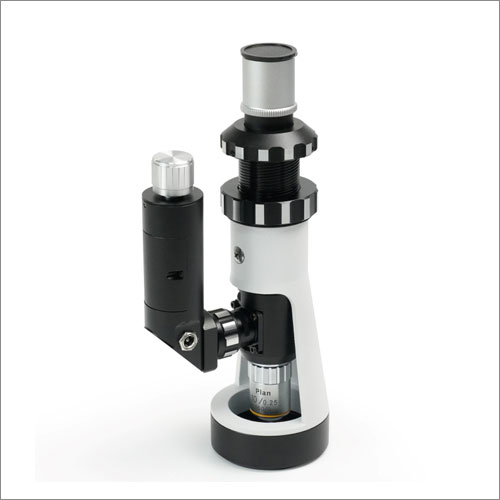

Portable Metallurgical Microscope

  • Home
  • Portable Metallurgical Microscope
Gravimetric Cleanliness Analysis System
Model : OptiPix - H
Eyepiece Plan eyepiece 10×/18mm
Objective Long working distance plan objective: 10×/0.25, WD 7.3mm; 50×/0.70, WD 0.5mm
Total Magnification 100×, 500×
Mechanical Tube Length 160mm
Focusing Range 20mm
Illumination Adjustable LED light (rechargeable)
Dimensions 23cm × 11cm × 7cm
Weight 0.75kg
Optional Parts WF16×, WF20×, WF10×/18 eyepiece with crossing line
Long working distance plan 5×, 20× and 40× objectives
Digital Cameras
Magnetic Base
