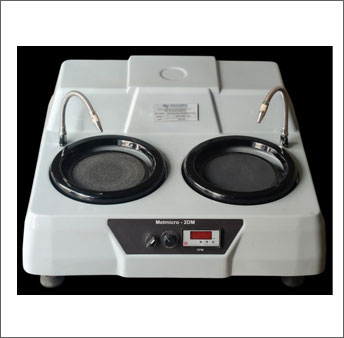

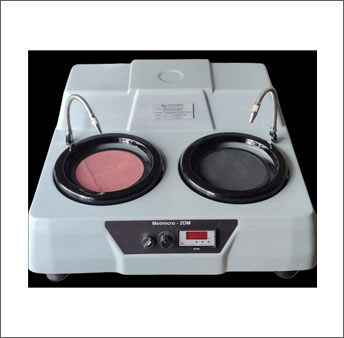

Technical Specification and description:
| Sr. No. | Description | Technical Specification |
|---|---|---|
| 1 | Motor | 1 HP, Single Phase, DC Motor. |
| 2 | Polishing Disc (2 Nos.) | Made of aluminum with anodizing and hard coating process. Dynamically balanced. |
| 3 | Disc Diameter | 200 mm |
| 4 | Power Transmission | By V-Belt and Pulley. |
| 5 | Electrical Circuit | Fully enclosed drive circuit with wiring protected by sleeves. MCB provided for overload protection. |
| 6 | Machine Frame | Fiber Material. |
| 7 | RPM Display | Four-digit digital RPM display. |
| 8 | Speed | Variable speed from 100 to 1400 RPM. |
| 9 | Safety | Motor, electrical DC drive, and circuit are fully enclosed for operator safety. |
| 10 | Water Connection | Inlet and outlet connections with flexible water pipe arrangement and flow control for polishing operations. |
| 11 | Sink | Corrosion-resistant FRP sink. |
| 12 | Rubber Pad | Anti-vibration rubber pads provided at machine feet. |
| 13 | Power Supply | 230 V AC, 50 Hz. |
