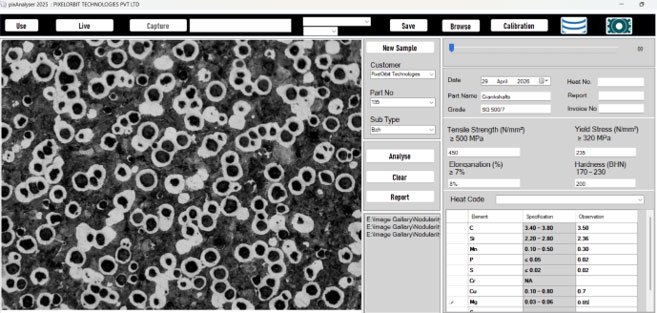

Cast Iron Analysis software is used for ductile irons and incorporates industry standards including
ASTM A 247-40, ISO 945-1:200
Applicable Standards
ASTM A247, ISO 945
Cast Iron Analysis Functions
The software shall provide:
Graphite Type Classification (Type I to Type VII)
Graphite Size Classification (Size 1 to 8)
Graphite Distribution Classification (A to E)
Nodularity percentage measurement
Nodule count per mm²
Graphite area percentage
Ferrite percentage measurement
Pearlite percentage measurement
Flake graphite length analysis
Vermicular graphite analysis
Particle shape analysis
Automatic graphite detection using threshold segmentation

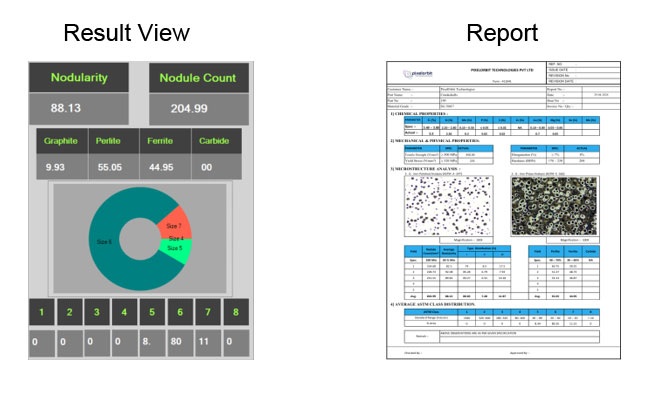

Reporting Features
Graphite Type Classification (Type I to Type VII)
Graphite Size Classification (Size 1 to 8)
Graphite Distribution Classification (A to E)
Automatic report generation
Export to PDF, Excel, and Word
Image with annotations in report
Statistical summary tables
User-customizable report templates
ASTM/ISO standard reference included in report
