Type : Optical Base
Model : optiPSA-Auto

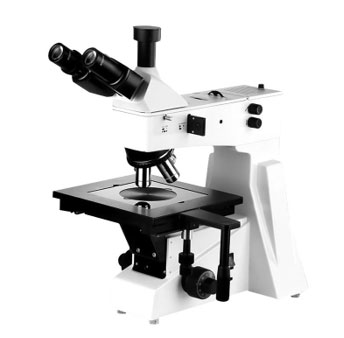

Optical Microscope with Motorized Stage
Particle Size Analysis Software
Pixelorbit Technologies Pvt. Ltd. can provide either the equipment or the testing service you require for the determination of the technical cleanliness of your components in accordance with inspection standards ISO16232 / VDA / NAS etc.
Pre-configured for ISO 16232.
Calculation of Component-Cleanliness-Code (CCC) according to ISO 16232.
Software /Joystick controlled Stage movements.
Auto image stitching and analysis.
Automatic scanning and capturing the entire field of filter paper. Software generates a single image of entire filter paper (size 47mm). So as to analyse and deliver the results for their true sizes.
Separation of particles as Metallic, Non-metallic and fibre.
Measurement of all the particles for their total number, size, perimeter, area. Distribution Metallic and Non-metallic particles as per their sizes in user defined size classes.
Automatic detection of particle types Reflective, Non-Reflective, Reflective- Fibrous and Non-Reflective-Fibrous.
Analysis of particle parameters for each particle (max particle size, min particle size, length, width, area fibre length, and many more).
Type : Stereo Base
Model : szmPSA-Auto

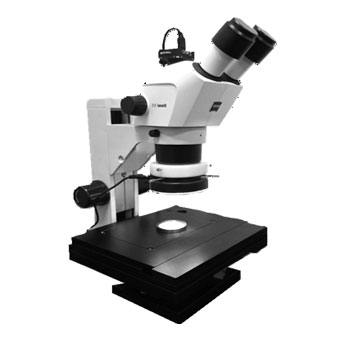

Stereo Microscope with Motorized Stage
Particle Size Analysis Software
Pixelorbit Technologies Pvt. Ltd. can provide either the equipment or the testing service you require for the determination of the technical cleanliness of your components in accordance with inspection standards ISO16232 / VDA / NAS etc.
Pre-configured for ISO 16232.
Calculation of Component-Cleanliness-Code (CCC) according to ISO 16232.
Software /Joystick controlled Stage movements.
Auto image stitching and analysis.
Automatic scanning and capturing the entire field of filter paper. Software generates a single image of entire filter paper (size 47mm). So as to analyse and deliver the results for their true sizes.
Separation of particles as Metallic, Non-metallic and fibre.
Measurement of all the particles for their total number, size, perimeter, area. Distribution Metallic and Non-metallic particles as per their sizes in user defined size classes.
Automatic detection of particle types Reflective, Non-Reflective, Reflective- Fibrous and Non-Reflective-Fibrous.
Analysis of particle parameters for each particle (max particle size, min particle size, length, width, area fibre length, and many more).
Make: Millipore
Gravimetric Cleanliness Analysis System is designed for precise measurement and evaluation of particulate contamination in industrial components according to international cleanliness standards.
A Gravimetric Cleanliness Analysis System is a laboratory or industrial system used to measure and analyze contamination particles collected from components, fluids, or filters by using the gravimetric method (weight measurement method).
