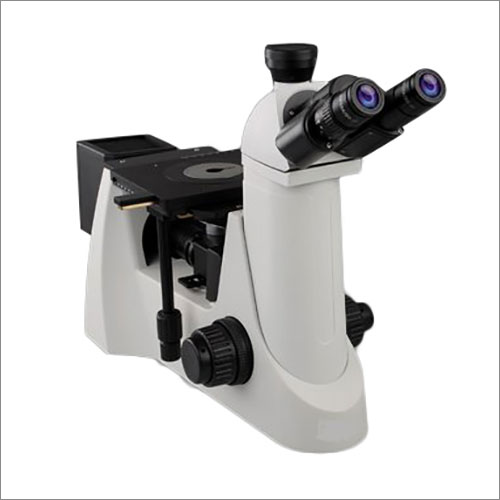

| Mechanical Body | Single mould sturdy stand made from anti-rust materials with an extended base for enhanced stability. |
| Trinocular Observation Head | Trinocular head with observation tube inclined at 45°. Interpupillary distance adjustable from 55 mm to 75 mm. |
| Eyepieces | Wide Field Eyepieces 10X (Paired), FOV 18 mm, with diopter adjustment. |
| Nosepiece | Reverse angle quadruple nosepiece revolving on ball bearings with positive indexing and soft rubber knurled grip. |
| Objectives (Infinity Corrected) |
|
| Magnification | 50X – 500X |
| Mechanical Stage | Mechanical stage of size 180 mm × 165 mm, supported on ball-bearing guideways with low-positioned co-axial controls for smooth stage movement. |
| Focusing | Co-axial focusing control with ball-bearing guideways and large focusing knobs, pre-focusing lever, and tension adjustment ring. Slow motion: 1 Div = 0.02 mm. Coarse motion range: 35 mm. Fine focusing range: 1.4 mm. |
| Illumination | KOHLER Epi Illuminator with LED lamp and adjustable brightness. Equipped with field and aperture diaphragm along with yellow, green, and blue filters. |

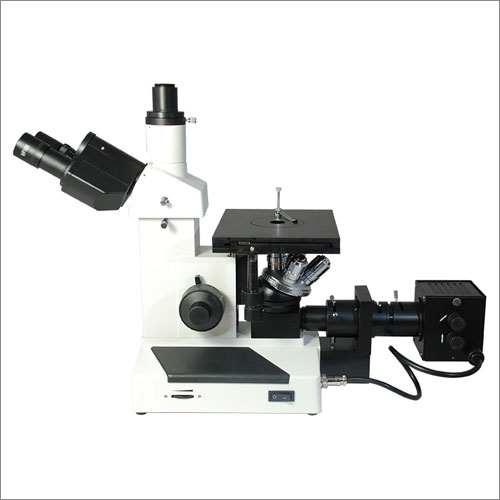

| Objectives | Plan Achromatic Objectives: 10X, 20X, 50X |
| Eyepieces | Widefield WF-10X |
| Magnification Range | 100X – 500X (Standard) |
| Mechanical Stage | Co-axial Mechanical Square Stage, 200 mm × 152 mm |
| Observation Tube | High-transmission Trinocular Head equipped with 45° inclined observation tubes and adjustable interpupillary distance. |
| Illumination | Built-in Koehler’s Incident Illuminator with 6V, 20W Halogen Lamp, Field and Aperture Diaphragm, with Yellow, Green and Blue Filters. |
| Focusing | Coarse and Fine Co-axial Focusing on Ball Track Movement for greater reliability. |
| Coarse Motion Range | 35 mm |
| Fine Focusing Range | 1.4 mm |
| Camera Adaptor | C-Mount Adaptor |
