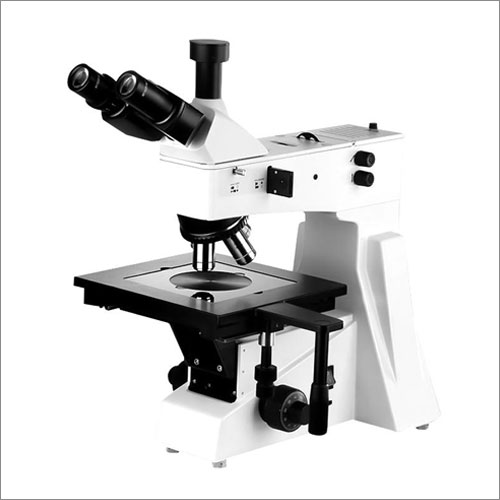

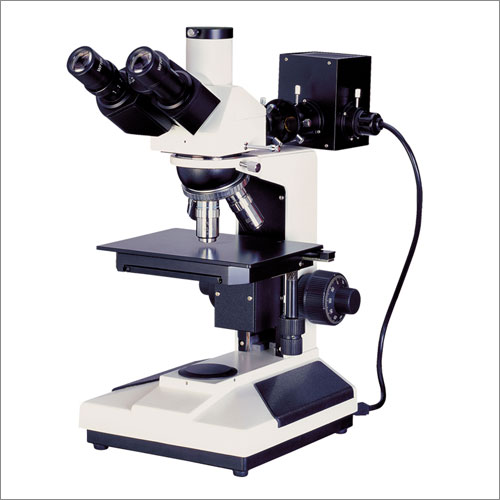

| Parameter | Specification |
|---|---|
| Body | Trinocular body rotatable through 360° and lockable at any desired position. Equipped with diopter and interpupillary distance adjustment. Mounted on a sturdy pole-type base. |
| Polarizing Outfit | Analyzer rotatable through 360°. Polarizer and Analyzer can be conveniently slid in and out of the optical path. |
| Standard Accessories |
|
| Trinocular Observation Head | Siedentopf observation head inclined at 30° and rotatable through 360°. Vertical phototube provided for microphotography. Diopter adjustment ring (±5) on ocular tube. Interpupillary distance adjustable from 55 mm to 75 mm. |
| Eyepiece (Anti-Fungus) | Wide Field 10X (Paired), Field of View 22 mm. |
| Objectives (Infinity Corrected) |
|
| Magnification | 50X – 500X |
| Illuminator | Epi Illuminator with 6V/20W Halogen Lamp and variable brightness control. Includes field diaphragm, aperture diaphragm, and polarizer. Yellow, Blue, Green, and Ground Glass Filters mounted on a filter wheel. |
| Mechanical Body | Co-axial focusing system with large focusing knobs, pre-focusing lever, and tension adjustment ring. Reverse quadruple nosepiece mounted on ball bearings. Mechanical stage size: 210 mm × 140 mm. Stage travel range: 75 mm × 50 mm. |
